Angle Load Sensor for vehicle weight monitoring measurement

  • Angle Load Sensor for vehicle weight monitoring measurement
  • Angle Load Sensor for vehicle weight monitoring measurement
  • Angle Load Sensor for vehicle weight monitoring measurement
  • Angle Load Sensor for vehicle weight monitoring measurement
  • Angle Load Sensor for vehicle weight monitoring measurement
  • Angle Load Sensor for vehicle weight monitoring measurement
Model No.︰SAHX-120B
Brand Name︰Soway
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 27 Related Items
Prev1617181920Next

Product Description

Specifications

Weight sensor for trucks Load cell 1t 10t 50t 100t
1.High accuracy

2.Easy to install

3.Supporting all mounting kits

4.Special design,  no-contact measurement.

5.The seismic performance is good, can be up to 5 g / 40 hz

6.Oil resistant, protection grade IP67



Part number: SAHX-120B

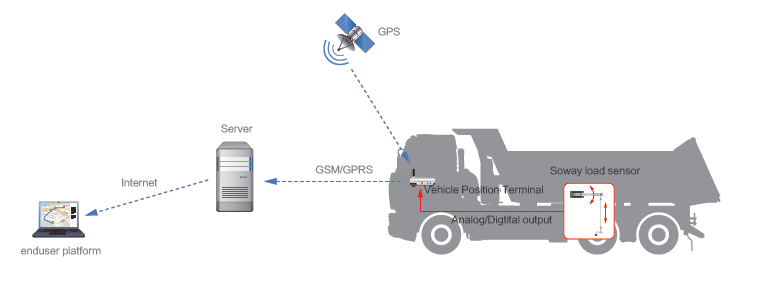

• load sensor principle of work:

SAHX is based on the technology of angle measurement. Displacement of leaf spring of the vehicle always happens when the weight changes. SAHX measures the displacement of leaf springs, the load status and weight can be computed accordingly.

no details please contact us.
